Garvee 4-Leg Adjustable Chain Sling – 1/4" x 5ft G80 Alloy Steel Rigging, 6,600 lbs Capacity
| Rigging Specification | Official Manufacturing Details |
|---|---|
| Brand Name | Garvee |
| Sling Configuration | 4-Leg Adjustable Chain Sling Assembly |
| Chain Grade & Material | Grade 80 (G80) Manganese Steel |
| Chain Sizing | 1/4 inch (6.3 mm) Diameter x 5 Feet (1.5 m) Length |
| Rated Working Load Capacity | 6,600 lbs (3,000 kg) |

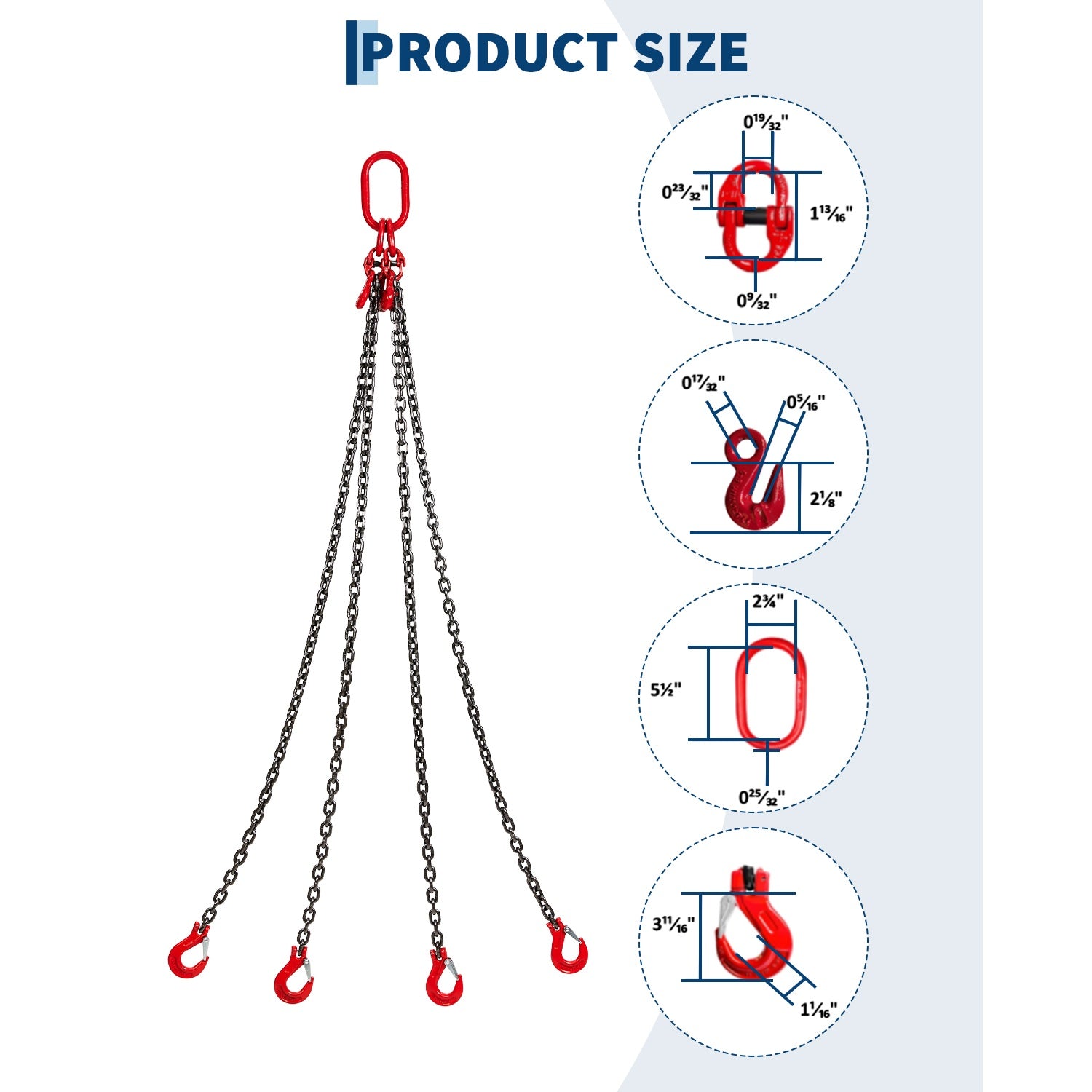

| Master Link Dimensions | 5.5" Height x 2.75" Width with 25/32" Link Thickness |
| Adjuster Hooks | 4 x Integrated 5/16" Slot Adjustable Grab Hooks |
| Sling Clevis Hooks | 4 x Forged Alloy Steel Hooks with 1-1/16" Throat Opening & Safety Latches |
| Endurance Features | High-Temperature Strength, Deformation & Wear Resistant |
| Total Product Net Weight | 18.08 Pounds |

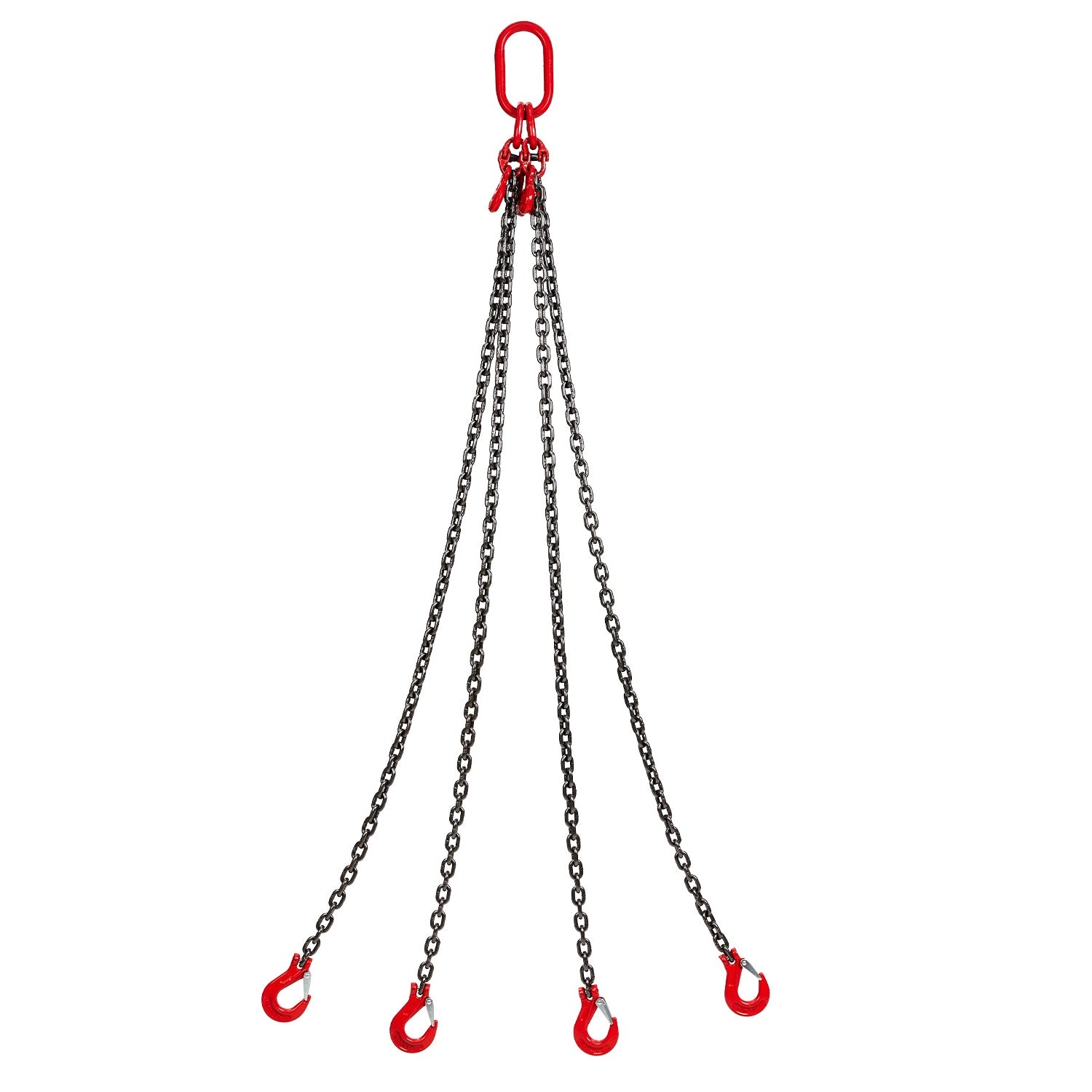

Garvee 4-Leg Adjustable Chain Sling – 1/4" x 5ft G80 Alloy Steel Rigging, 6,600 lbs Capacity
6,600 lbs Heavy Duty 4-Leg Adjustable Industrial Chain Sling
Achieve absolute balance and structural safety during heavy overhead hoisting. The Garvee 4-Leg Adjustable Chain Sling is engineered specifically for workshops, engine pulls, construction, and agricultural rigging. Weighing a solid 18.08 lbs, this system provides a 6,600 lbs working load capacity to reliably support demanding material handling applications.
Premium Engineering & Rigging Safety

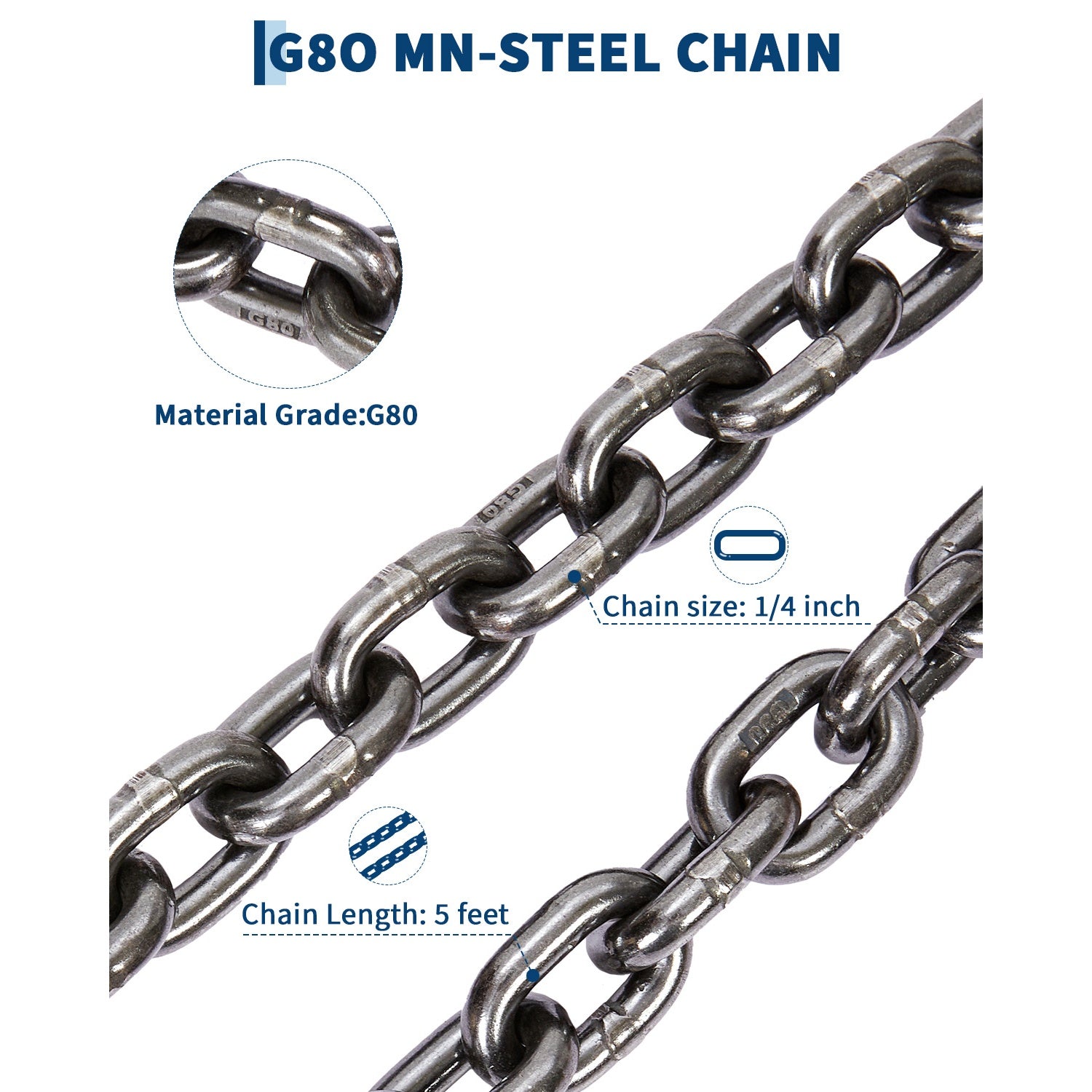

Built using 1/4-inch diameter premium G80 manganese steel chains. This multi-leg configuration offers exceptional tensile strength, minimal elongation, and high fatigue resistance under heavy mechanical load stresses.

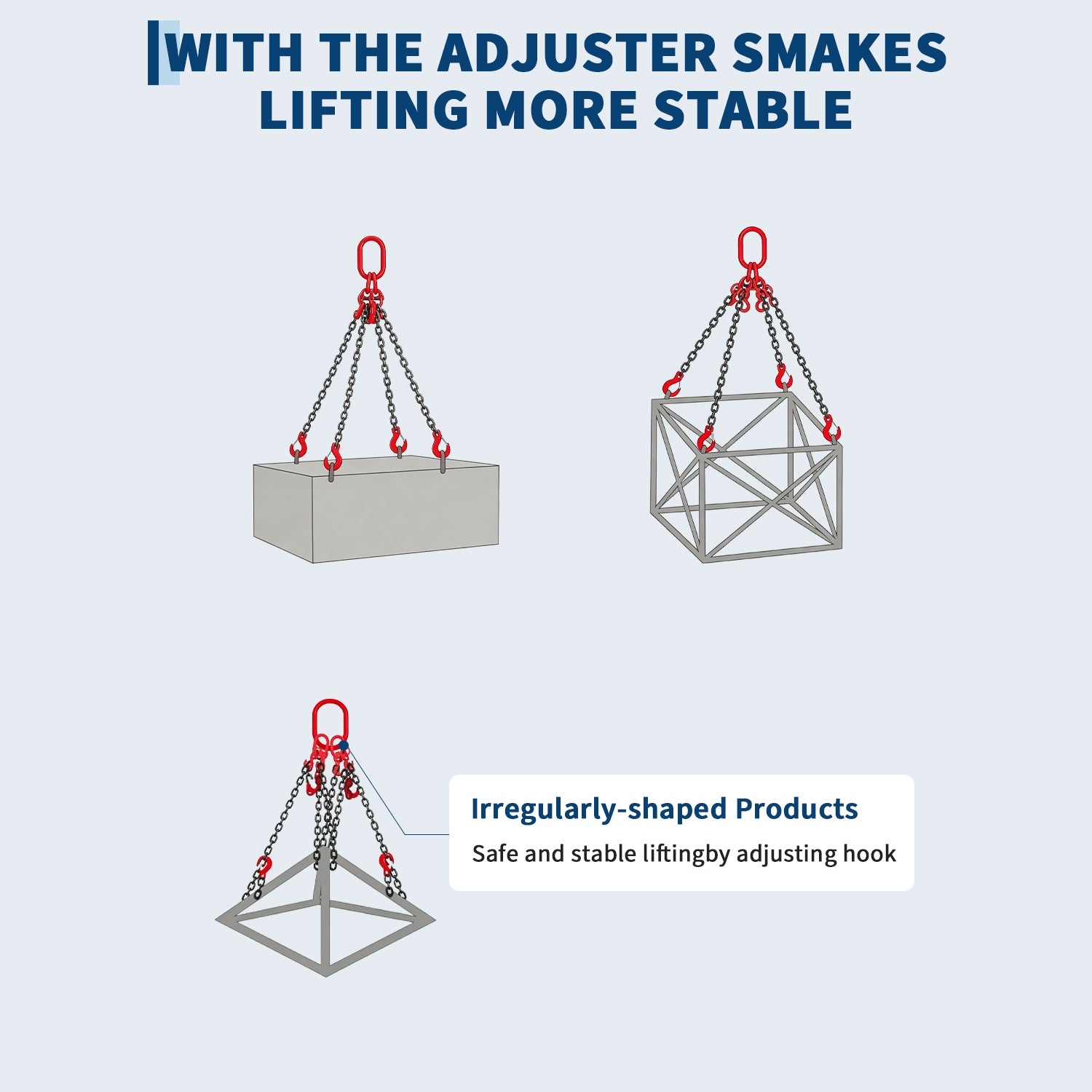

Each leg is fitted with an independent adjuster hook featuring a 5/16" slot. This allows rigging crews to easily shorten or lengthen individual chain lines for a perfectly balanced lift on irregular, asymmetrical, or off-center loads.

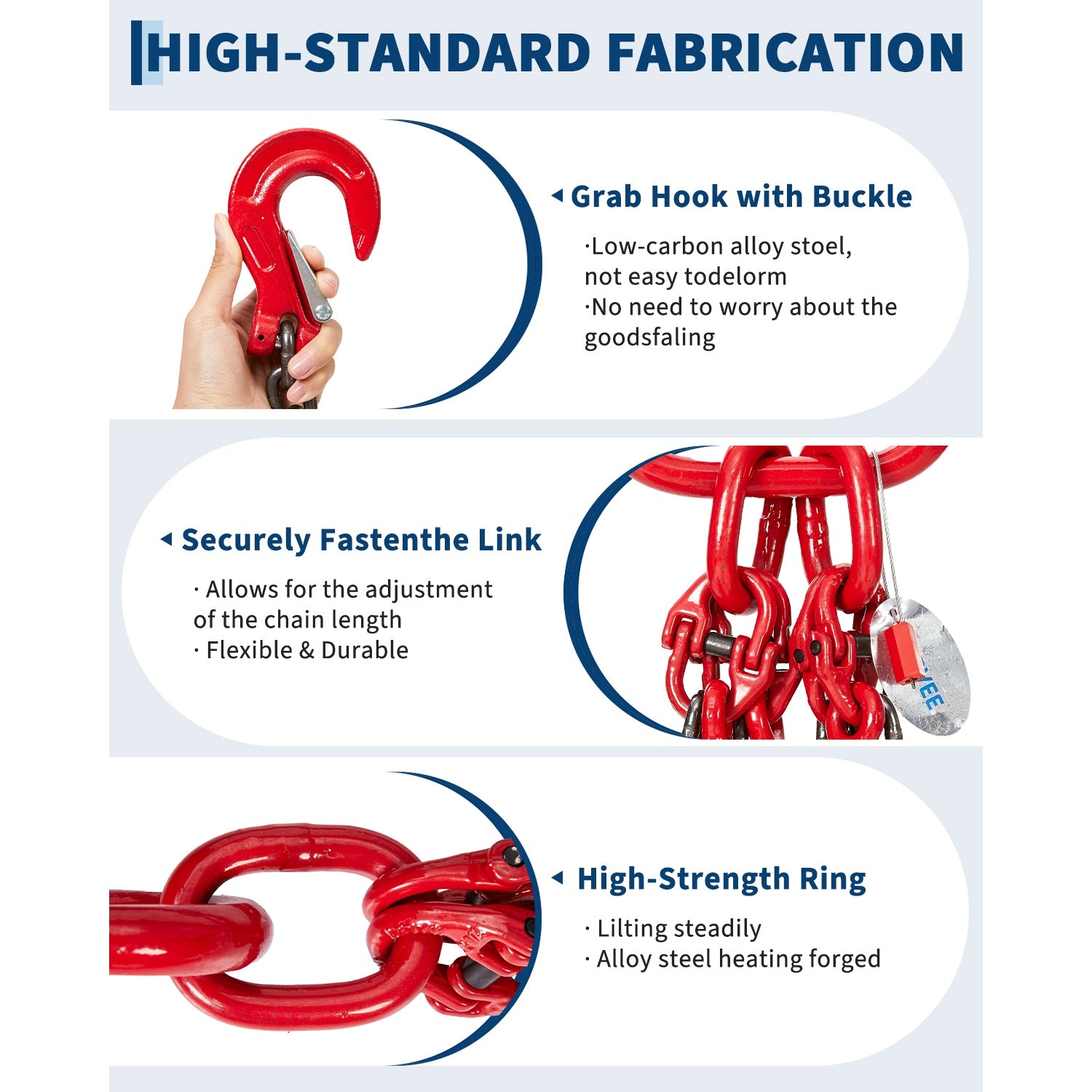

The lower ends feature professionally welded clevis sling hooks forged from alloy steel. Boasting a clean 1-1/16" throat opening and built-in spring safety latches, they ensure positive engagement and prevent unexpected load detachments.
The assembly anchors to a heavy 5.5" x 2.75" oblong master ring with a 25/32" link thickness. This creates a large, high-strength coupling zone that slides easily onto crane hooks, gantry hoists, or engine shop cherry pickers.

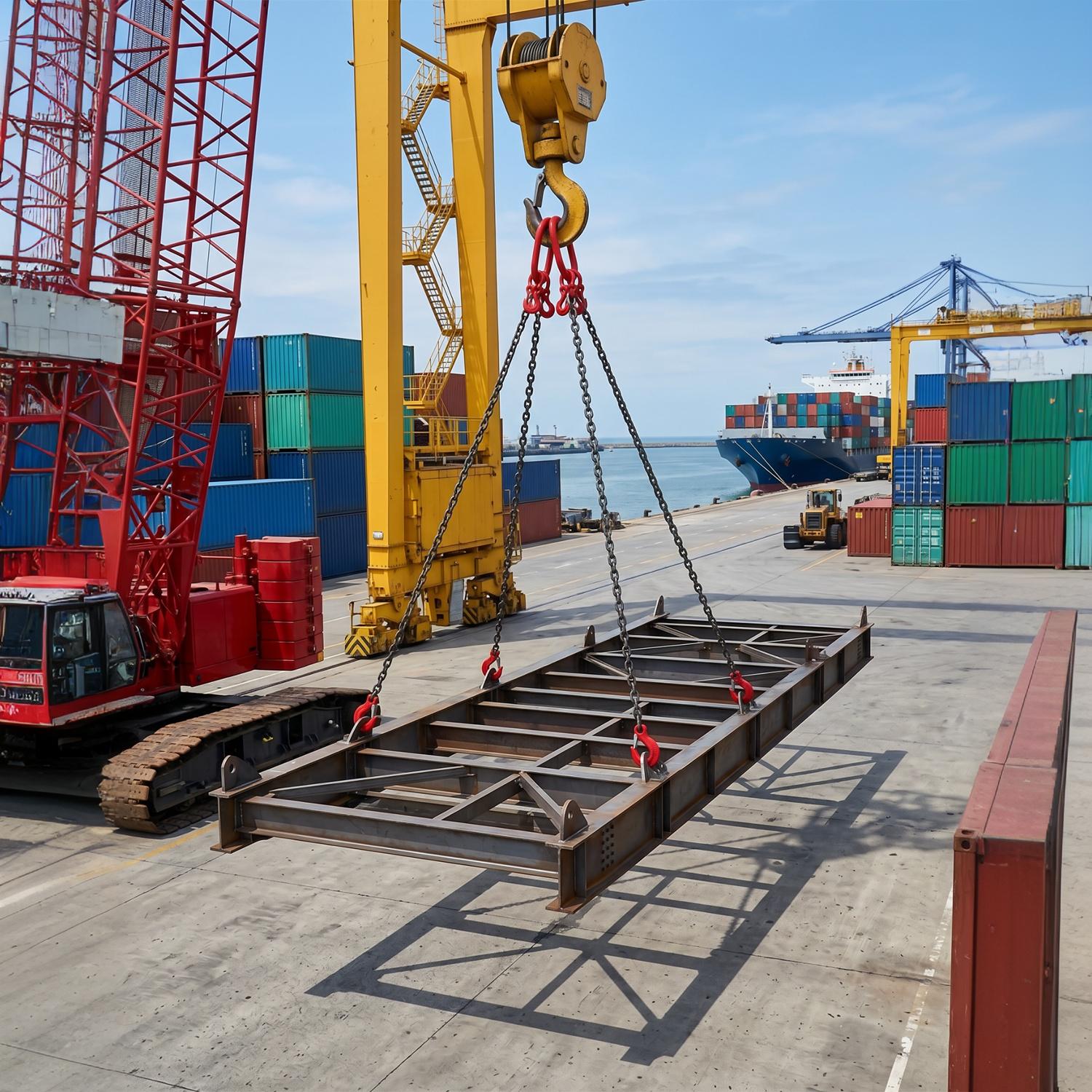

Multi-Purpose Material Hoisting Deployment
Resisting wear, high operating temperatures, and structural deformation, this 4-leg 5ft rigging sling is ideal for lifting:
- Automotive & Diesel Repair: Acting as an engine hoist sling for smooth vehicle engine and transmission extraction.
- Manufacturing & Metal Shops: Moving structural steel beams, heavy metal tooling, and large fabrication parts.
- Farms & Construction: Hoisting large logs, heavy mechanical components, attachments, and bulk materials with confidence.
