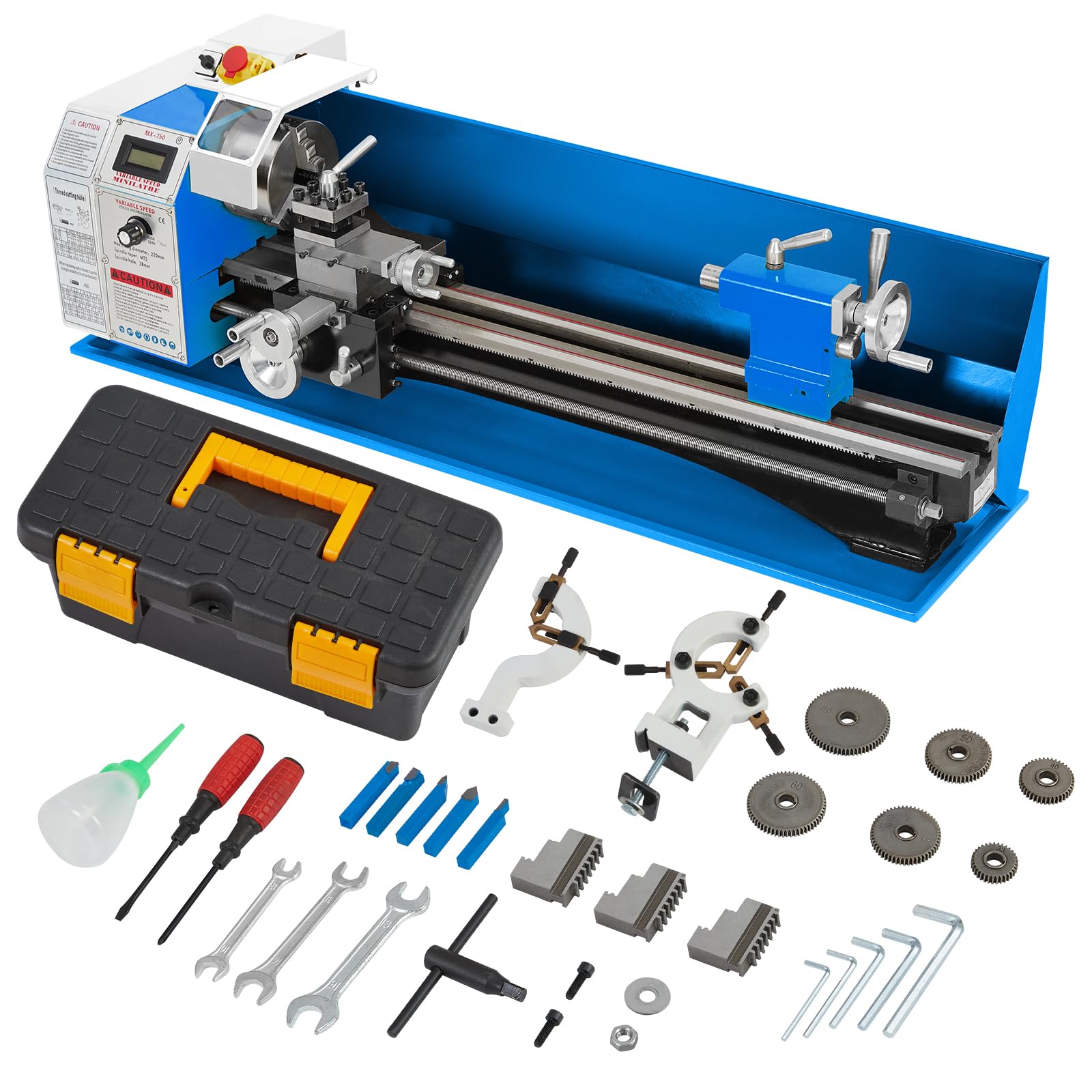

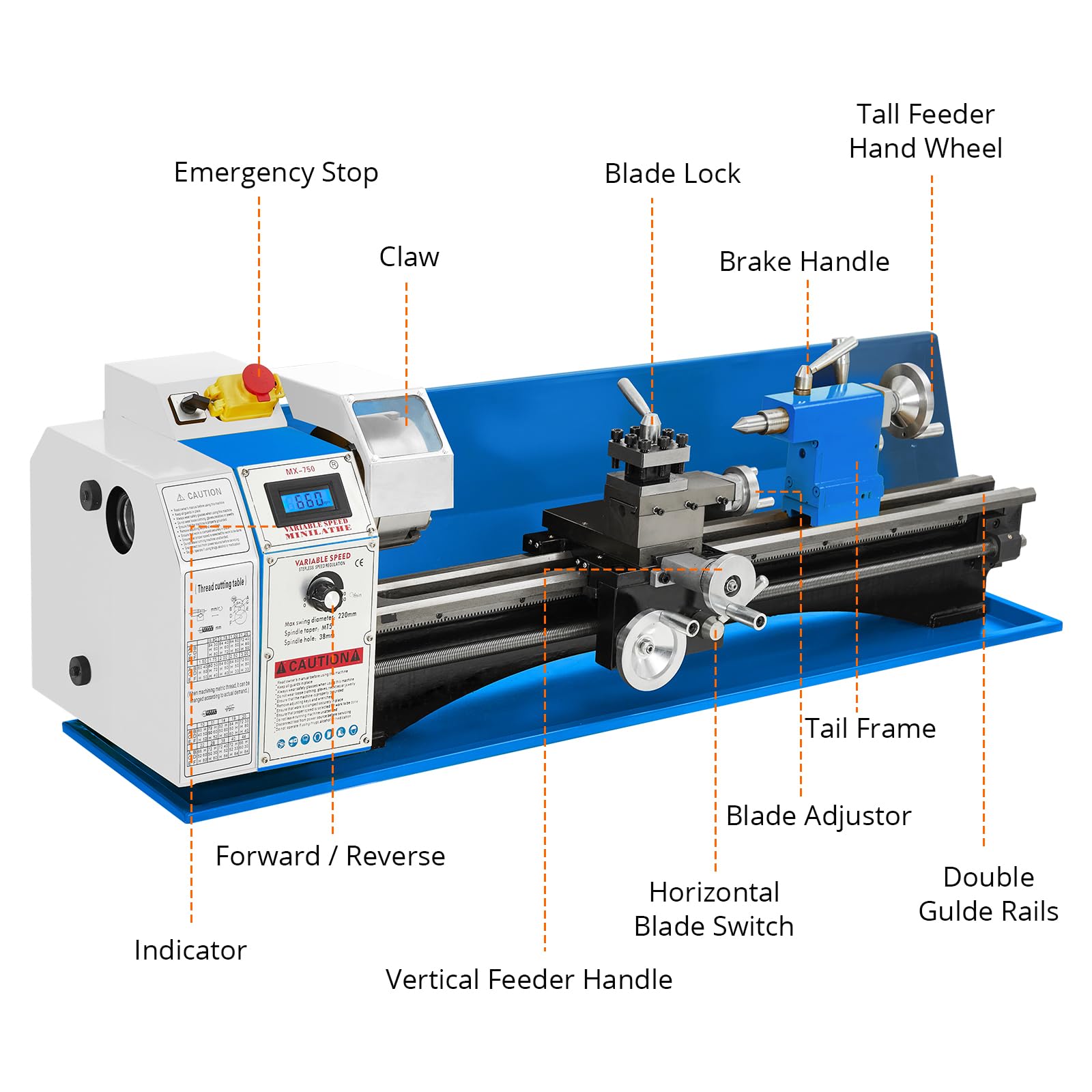

Garvee Mini Metal Lathe 9"x30" Benchtop, 1100W Variable Speed, Sturdy Iron, Accurate 3-Jaw Chuck, Digital Display

Regular price $1,549.99
Sale price $1,549.99 Regular price $2,264.99
Unit price
- 31%
$1,395.00
Sign in to unlock the price | Save Now >>
Size :9"X30"
In Stock. Shipping From United States
Est. Delivery Time:
Free US Shipping
30 Day No- Hassle Returns
12-Month Warranty
Total Price
$1,549.99
PHO_14YDUPBX

Garvee Mini Metal Lathe 9"x30" Benchtop, 1100W Variable Speed, Sturdy Iron, Accurate 3-Jaw Chuck, Digital Display

Description
Specification
Reviews
9" X 30" Variable-speed Metal Lathe
9 X 24 Variable-speed Metal Lathe

9" X 30" Variable-speed Metal Lathe

The 9 x 30 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.

Digital Display

Digital Display

This metal lathe features a digital screen clearly displaying the rotational speed, ensuring precise and smooth operation.

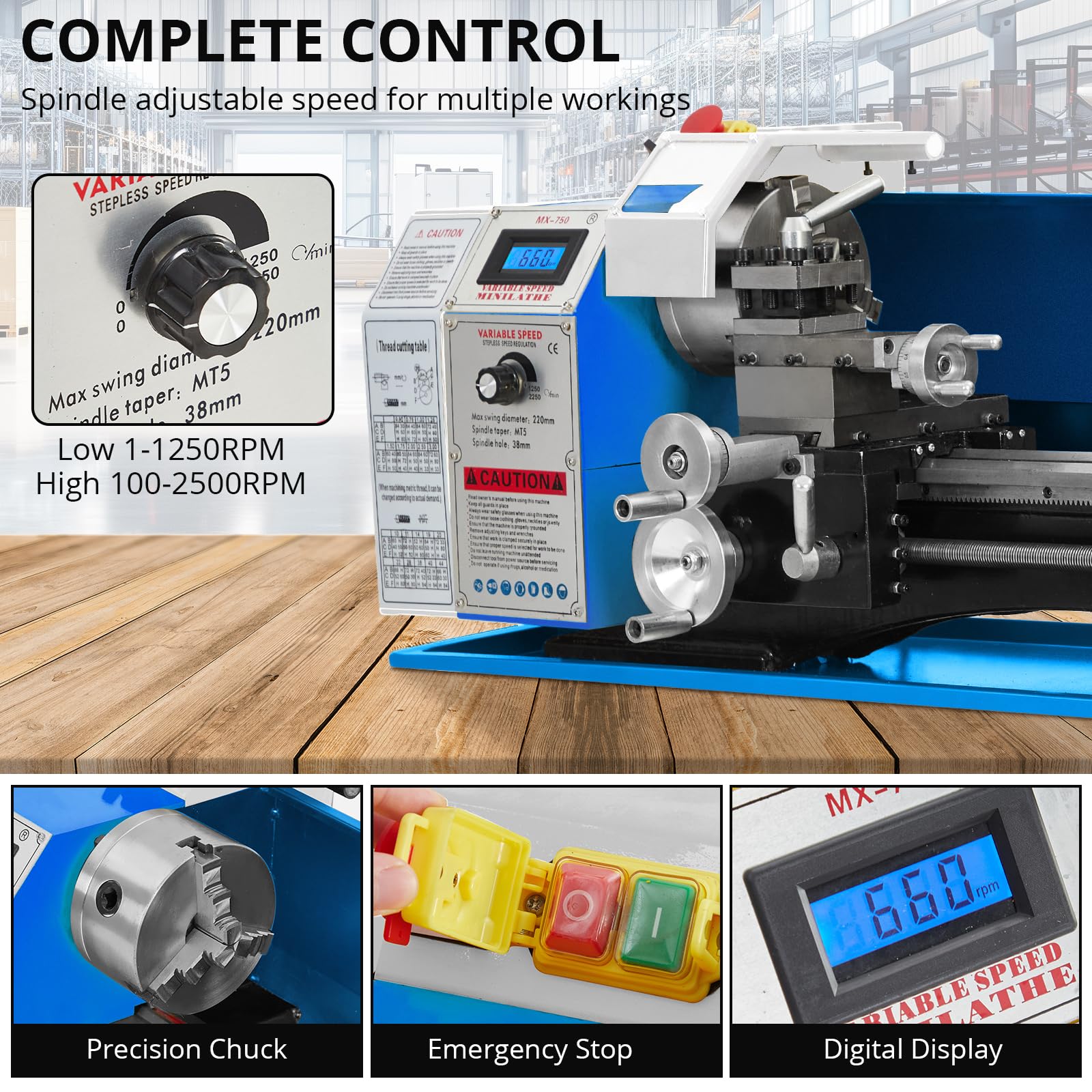

Infinitely Variable Speeds

Infinitely Variable Speeds

Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.

High Accuracy Chuck

High Accuracy Chuck

3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.

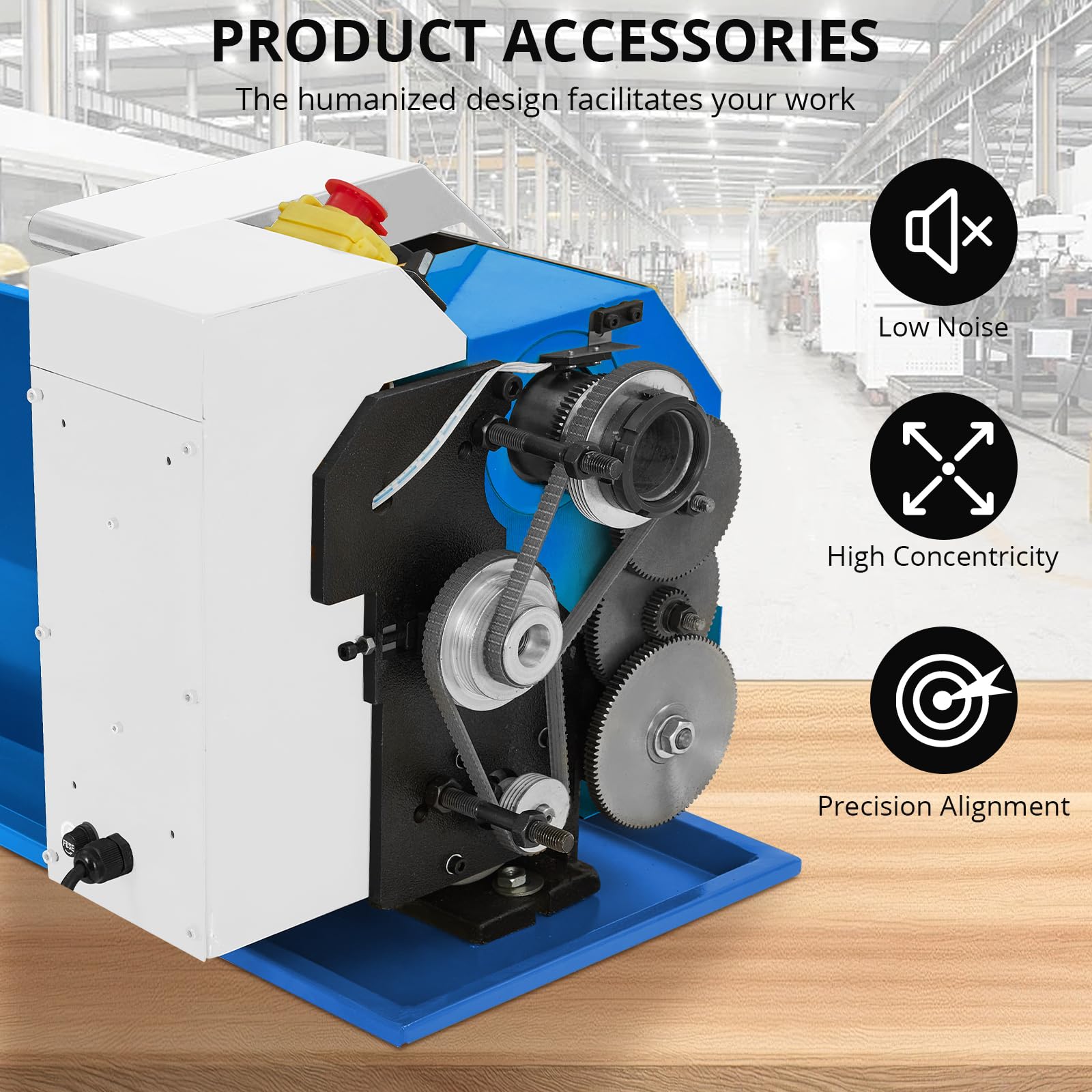

Metal Gear Set

Metal Gear Set

Especially suitable for threading, this wear-resistant and durable set of metal gears provides strong and efficient power transmission to the lathe.

Professional Cross Slide

Professional Cross Slide

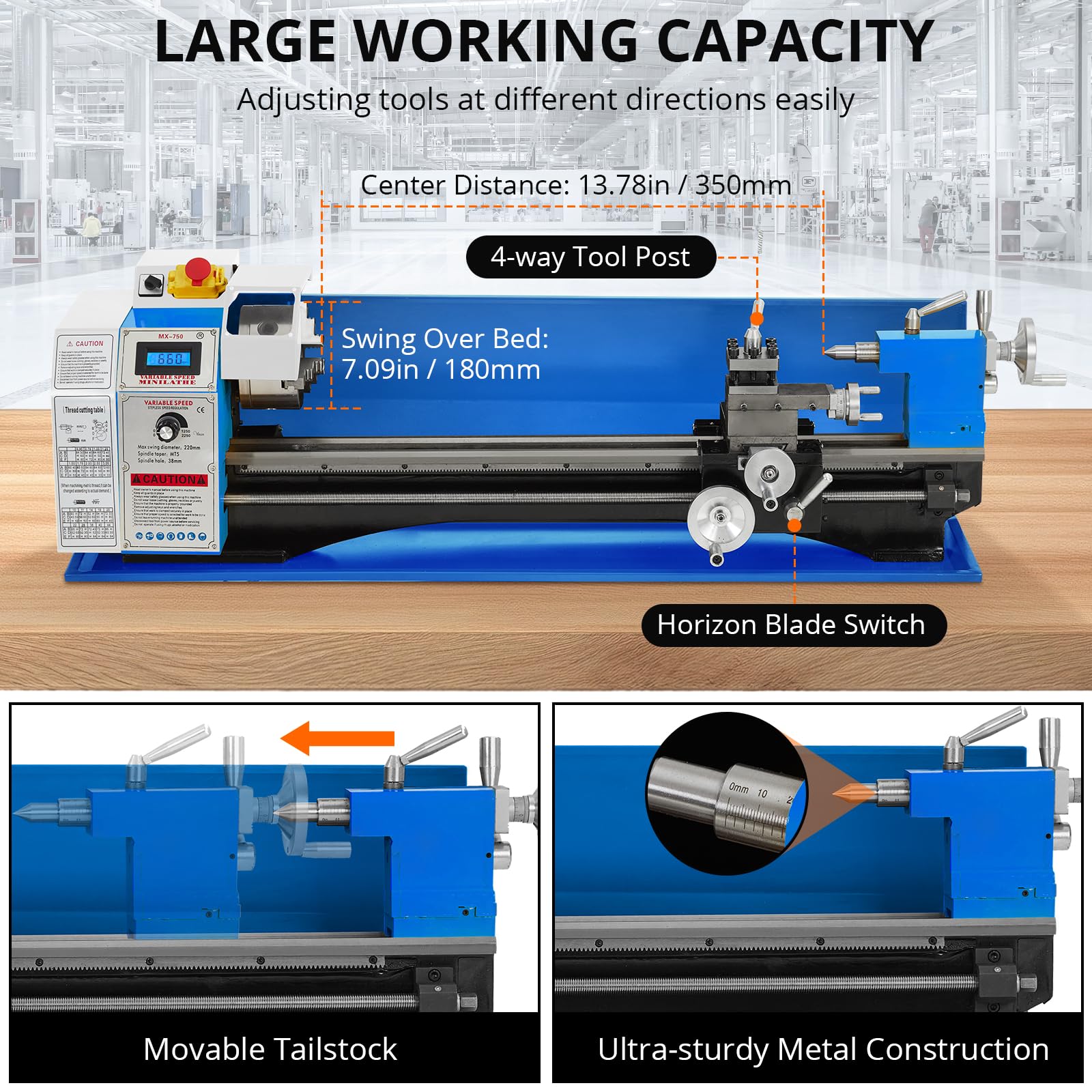

Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 350mm(13.78"). A lamp is for acurate operation in a dark environment.

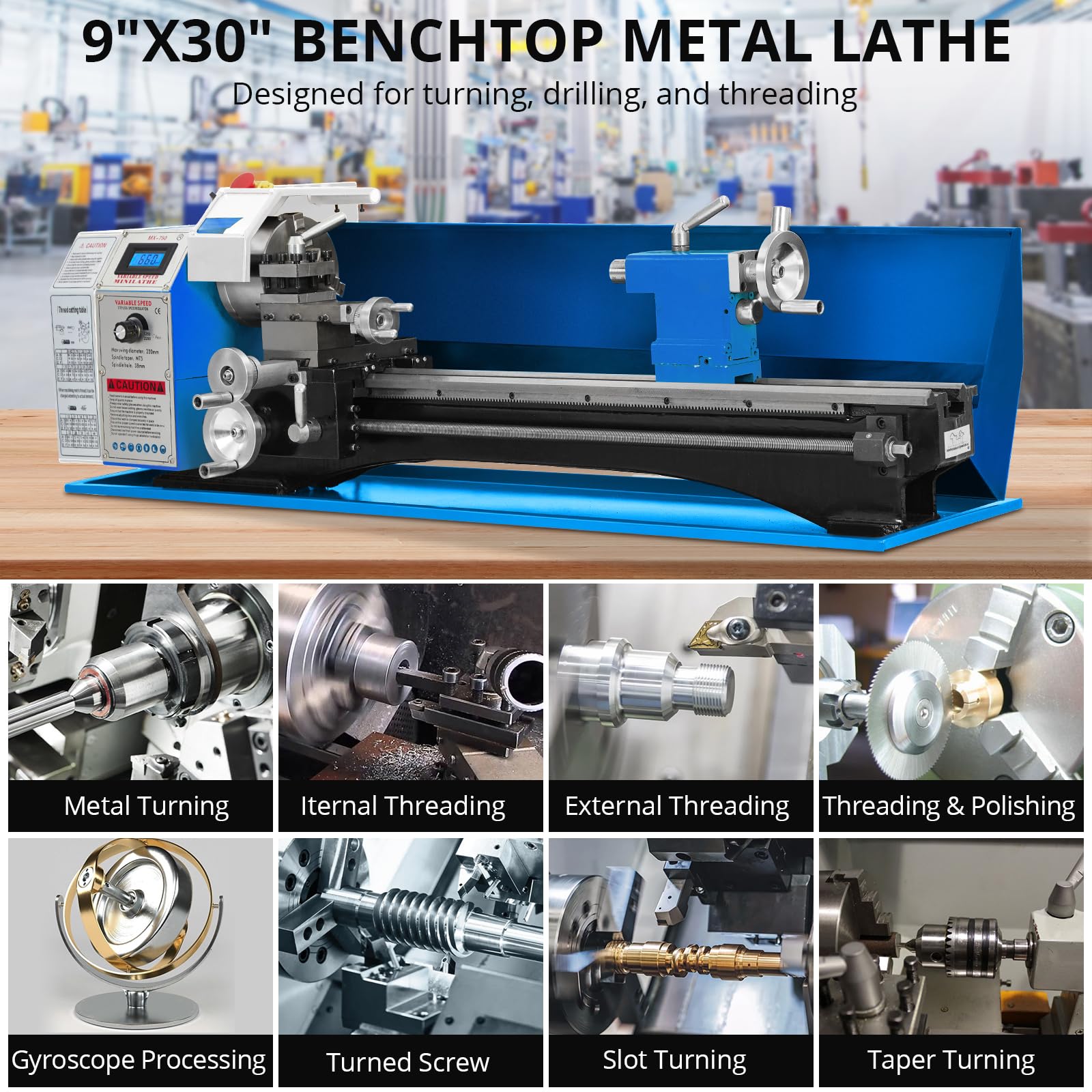

Wide Applications

Wide Applications

Suitable for processing jobs, like counter face turning, driling, threading and cutting jobs on materials made up of round bar. All accessories are well packed.

Key Features

Premium Construction

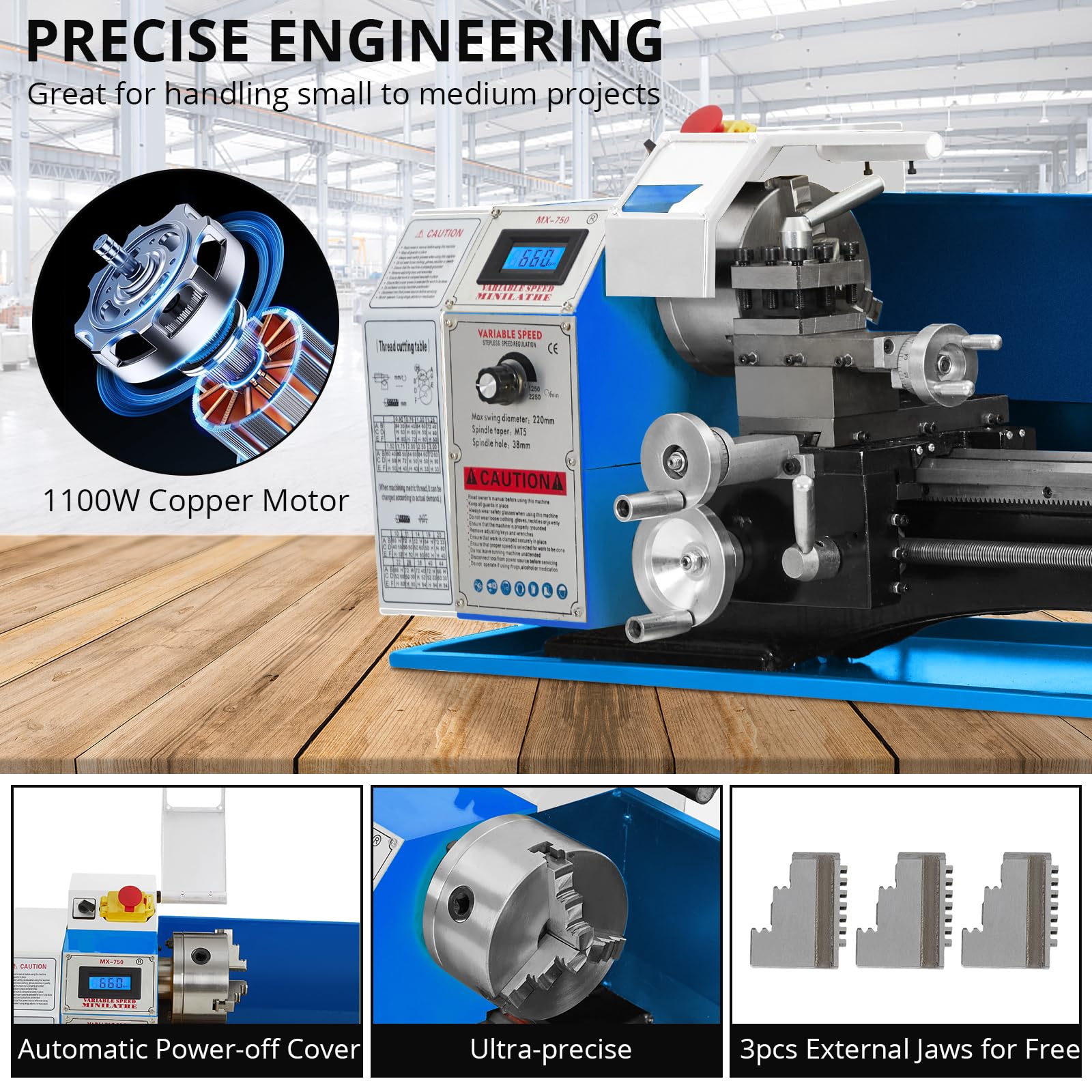

Built from high-grade iron with wear-resistant metal gears and powerful 1100W motor for professional performance

🚀

Precise Speed Control

Variable speed settings (0-2500 RPM) with digital display for exact adjustments and complete project control

3-Jaw Self-Centering Chuck

5-inch chuck securely holds materials with precision tapered roller bearings for accuracy within 0.2mm

🔧

Professional Compound Rest

Easily adjust for internal, face, and bevel cutting with quick-change tool post for enhanced efficiency

🛡

Safety Features

Automatic power-off protection switch with full-length splashguard ensures safe working environment

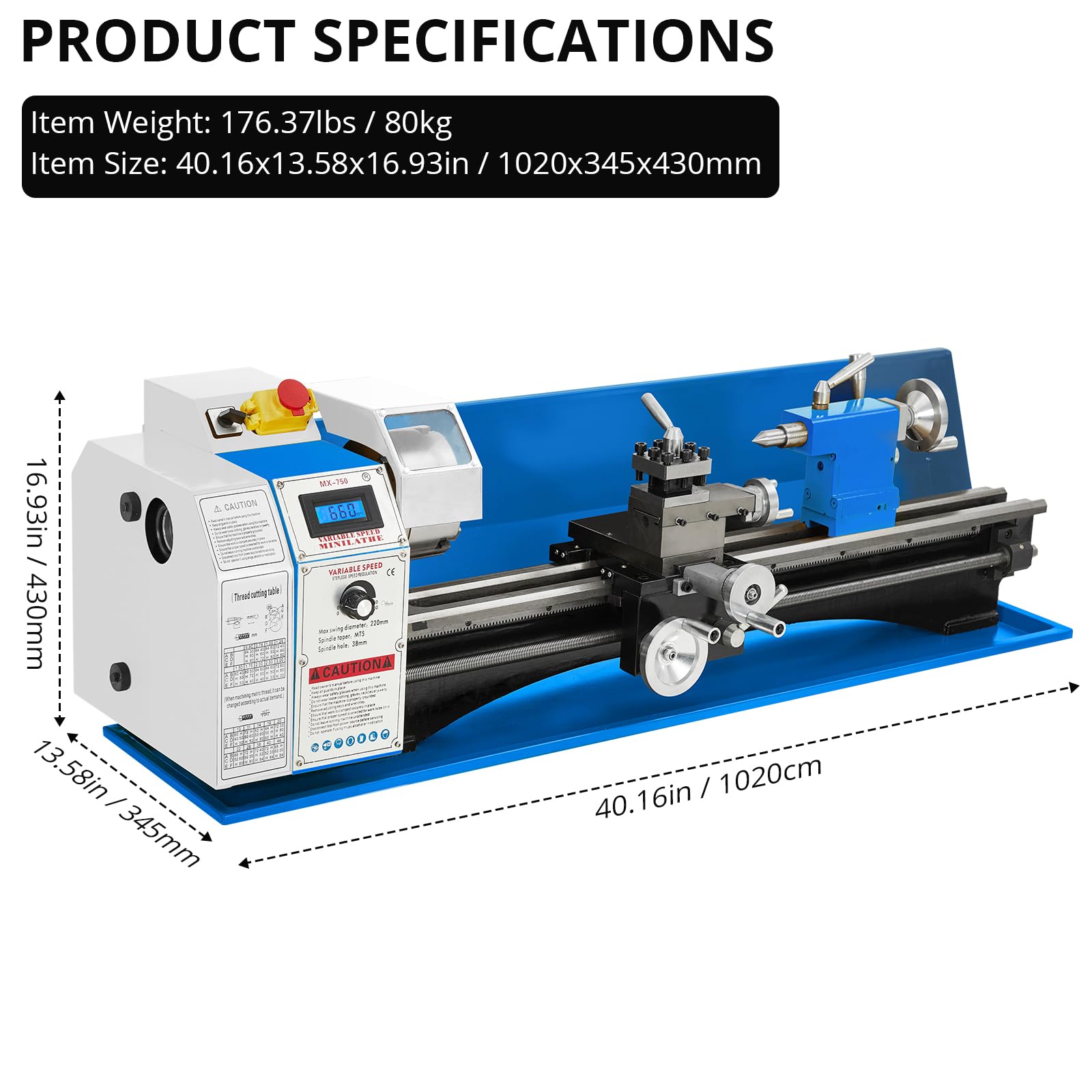

Specifications

Brand Garvee
Power of Motor 1100W
Spindle Bore 38mm(1.49")
Distance Between Centers 750mm
Swing Over Bed 220mm(8.66")
Chuck Diameter 125mm(4.92")
Taper Of Spindle MT5
Taper Of Tailstock MT2
Variable Speed 50-2500PRM
Inch Thread 10-44 T.P.I
Metric Thread 0.5-3.0mm
Item Weight 188 pounds

Reviews

Customer Reviews

Based on 75 reviews
85%
(64)
15%
(11)
0%
(0)
0%
(0)
0%
(0)
W
Woody
I like the lathe I (apparently randomly) ended up with

I think the other reviewer who presented a laundry list of grievances was a bit hard on what he received. I agree that with this particular lathe it appears to be a crapshoot what you’ll actually receive. The other person showed a photo of the lathe I saw in the listing. He also showed a photo of another lathe that he thought he was getting. What I received was different still. So there are at least 3 different lathes you might receive. I got an MX-600 if you’re curious. But even then there are different configurations of that model.It’s also true that there’s virtually no way you’re going to get any warranty service on these machines because there’s no contact information whatsoever. So you need to make sure the machine you get is in proper order and do your best to keep it the way. I actually had to have a replacement sent because the first one wasn’t working properly. Once the return period has expired it will be no different than if you had bought it used the way I see it.The other reviewer mentioned you’d be better off with an American made lathe. Hmm. I’m not sure I agree with that. A new one would be nice certainly. But it would cost, at minimum, twenty times the price. As for a used American lathe it’s truly a crapshoot what you might end up with, especially in the price range of this lathe. I’ve seen so many videos on YouTube where people are having to do way more work than I’d be willing to do to get old lathes working. If you get a lathe that was in a factory for years it could easily have a scooped out bed. Or who knows what kind of abuse it might have undergone in a school setting. Again, if you find an immaculate lathe it won’t be anywhere near this price range.I can say the people that sent these lathes out should be ashamed. Both the ones I received looked used with dings and dents. But they were safely inside their crate. I think it was just rough handling at the factory. Also understand these are assembled and that’s it. You’re going to have to fine tune it yourself. Nothing was properly tightened or aligned. I spent at least 8 to 10 hours going over mine. I’m not complaining because I got it at a lower price than anything I saw elsewhere. If I had paid much more I might have wanted my money back.I do now have a lathe that will be perfectly suitable for my needs. I didn’t want to spend a truckload on something I’m only going to use occasionally. And so, considering foremost what I paid for a brand new machine (well under 1k), I’m giving it 4 stars. The takeaway is you need to be realistic in your expectations at this bottom end price range.

J
Jimmy Shepard
Good machine

It's a learning curve, but lathe measures up to all my expectations. Have enjoyed working with this lathe. Recommend if you want to learn hobby machining this is a good lathe for that.

R
Ricky West
Reliable Day-to-Day Performance

I’ve been running this almost daily for a couple of months and it’s been completely reliable—no issues with electronics, motor, or gears.

C
Chris Palmer
Perfect Lathe for a One-Man Shop

I run a small side business making custom parts, and this has handled every order so far. Accuracy and repeatability are right where I need them.
